No Specifications
| Brand | ASUS |
|---|---|
| Series | PRO |
| Model | Pro WS W680-ACE IPMI |
| CPU Socket Type | LGA 1700 |
|---|---|
| CPU Type | Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold |
| Chipset | Intel W680 |
|---|
| Number of Memory Slots | 4x288pin (DDR5) |
|---|---|
| Memory Standard | DDR5 4400 |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |

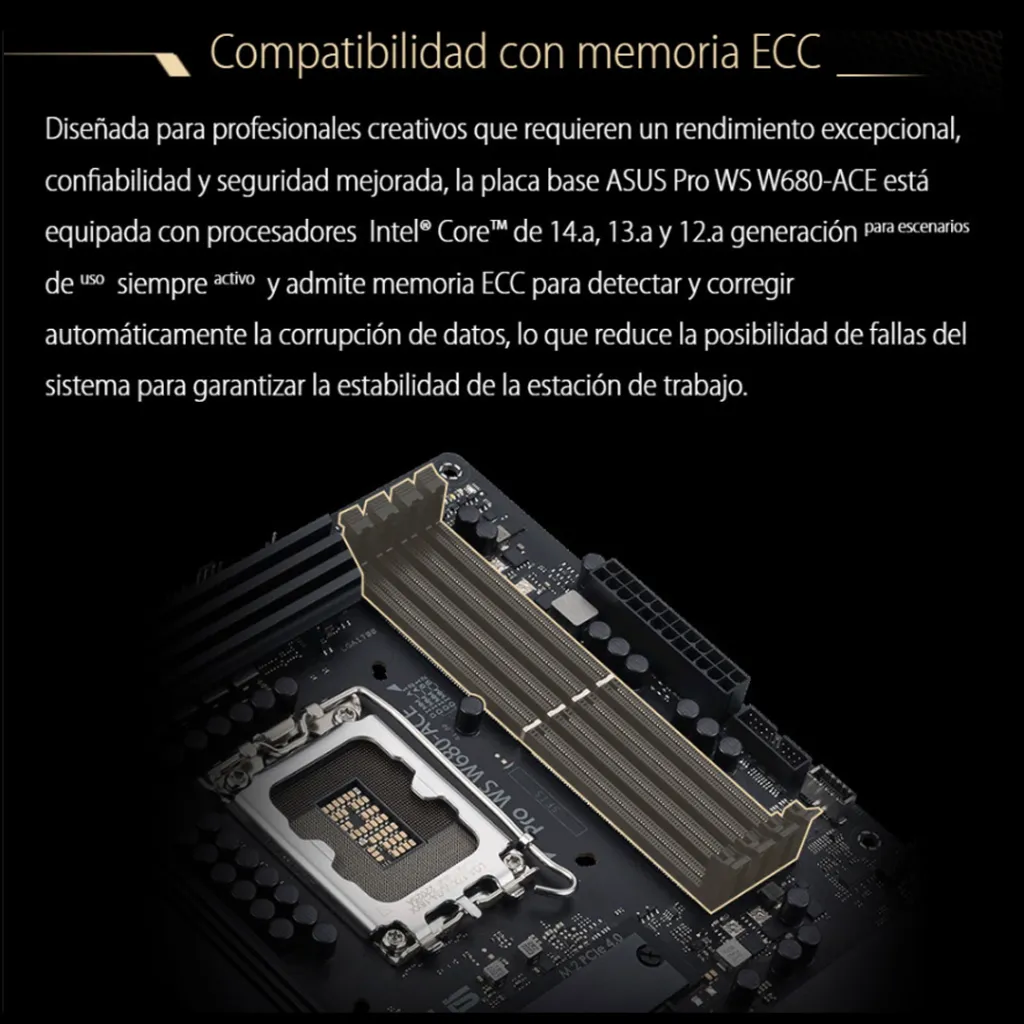

| Memory Feature | ECC and Non-ECC Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |

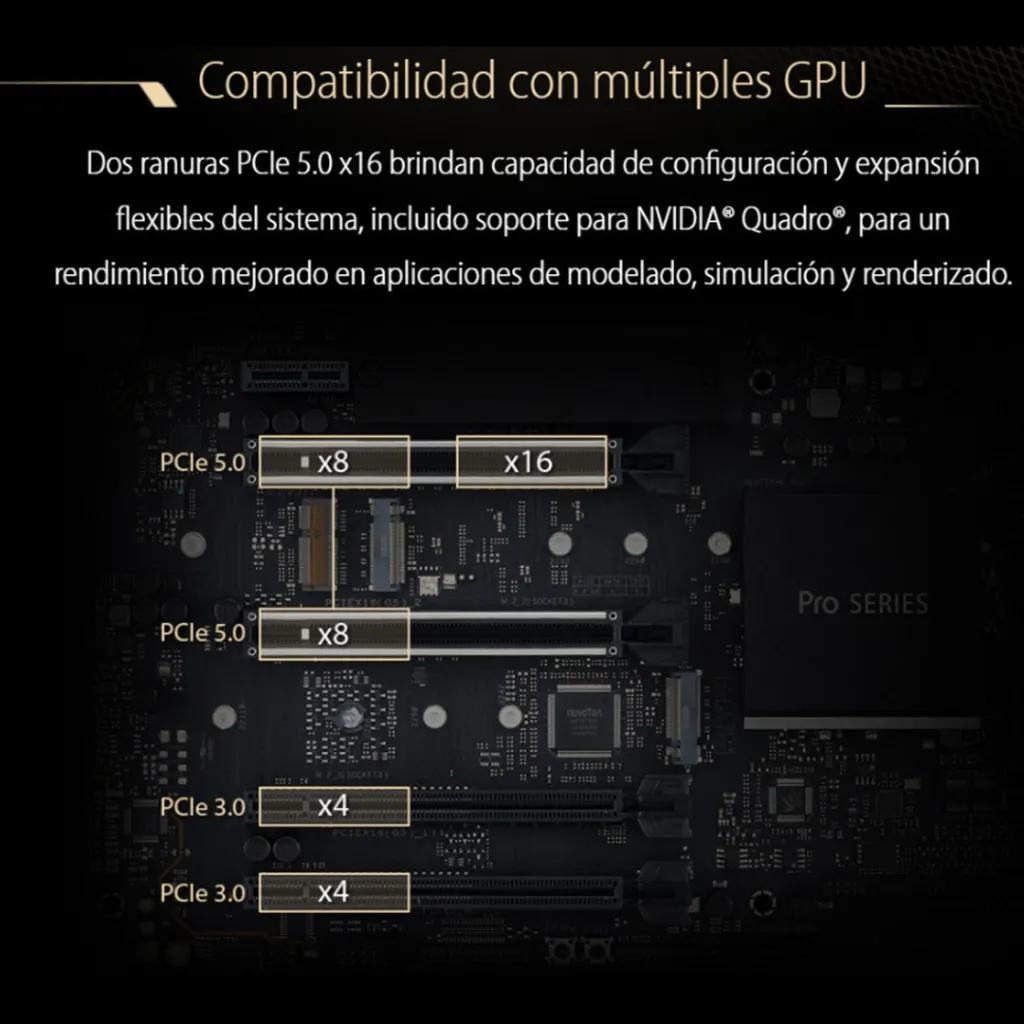

| PCI Express 5.0 x16 | Intel 13th & 12th Gen Processors* - 2 x PCIe 5.0 x16 slots (support x16 or x8 / x8 mode) * Please check the PCIe bifurcation table at the support site (https://www.asus.com/support/FAQ/1037507/). |
|---|---|
| PCI Express 3.0 x16 | Intel W680 Chipset - 2 x PCIe 3.0 x16 slots (supports x4 mode) |
| PCI Express x1 | 1 x PCIe 3.0 x1 slot |
| SATA 6Gb/s | 8 x SATA 6Gb/s |
|---|---|

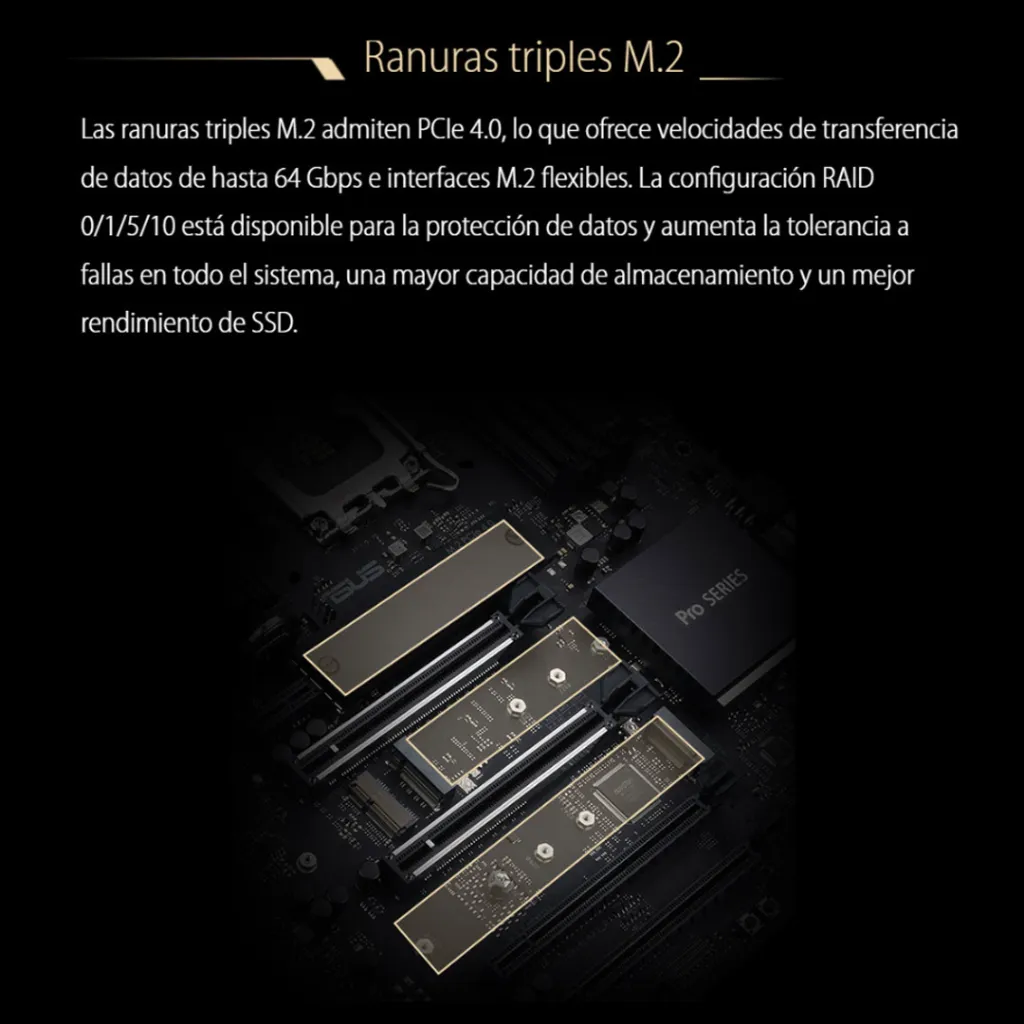

| M.2 | Intel 13th & 12th Gen Processors - M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel W680 Chipset** - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) - M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) ** Intel Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots. |
| SATA RAID | 0/1/5/10 |
| Audio Channels | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers - Unique de-pop circuit |
|---|

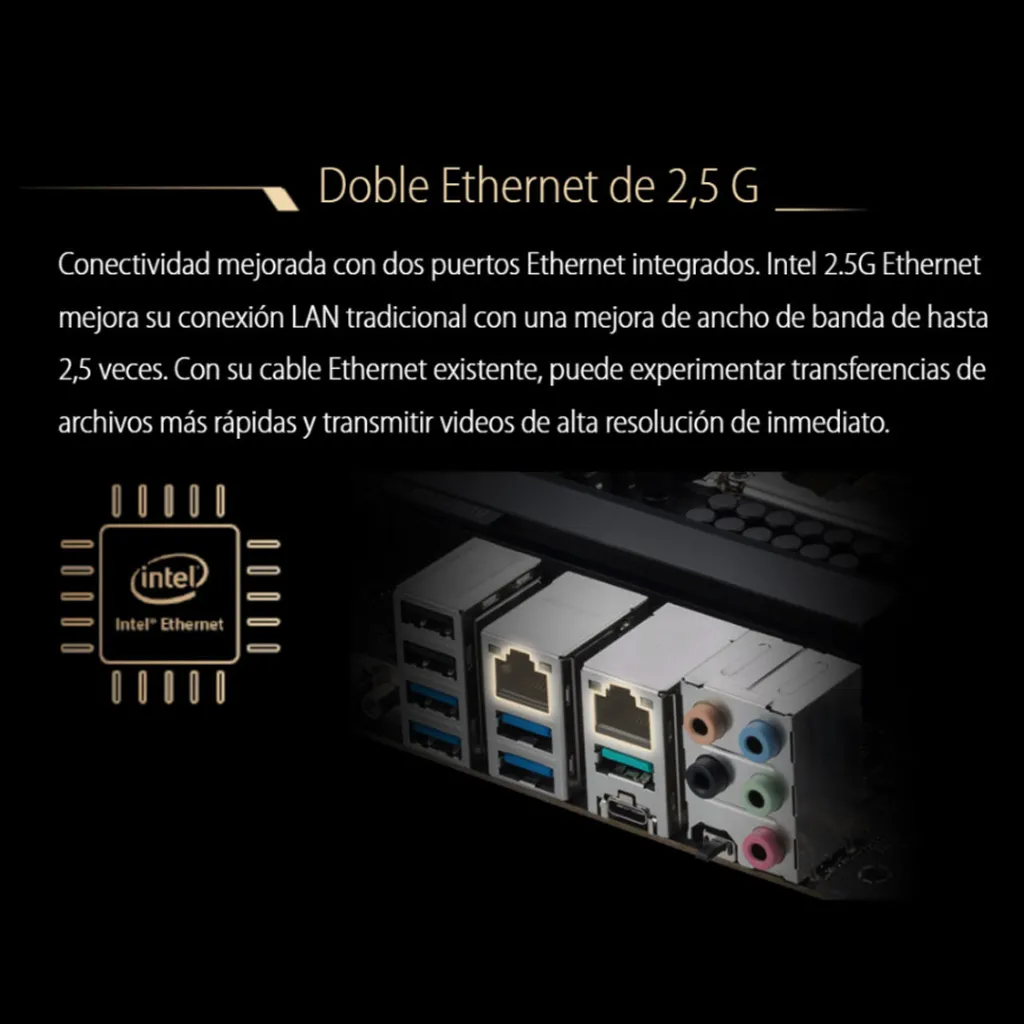

| LAN Chipset | 2 x Intel 2.5Gb Ethernet ASUS LANGuard |
|---|---|
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module is sold separately. |

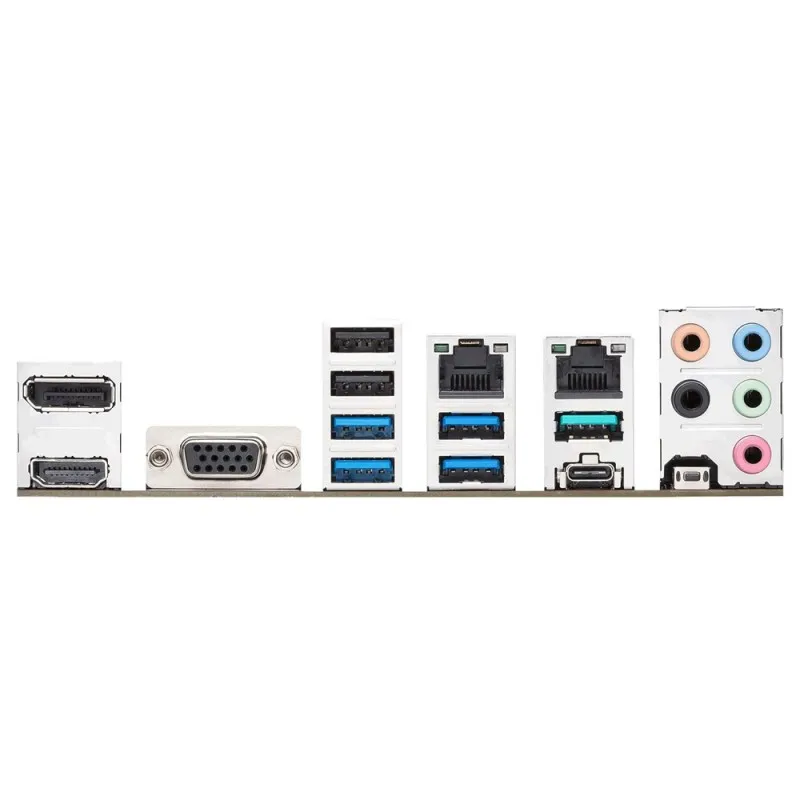

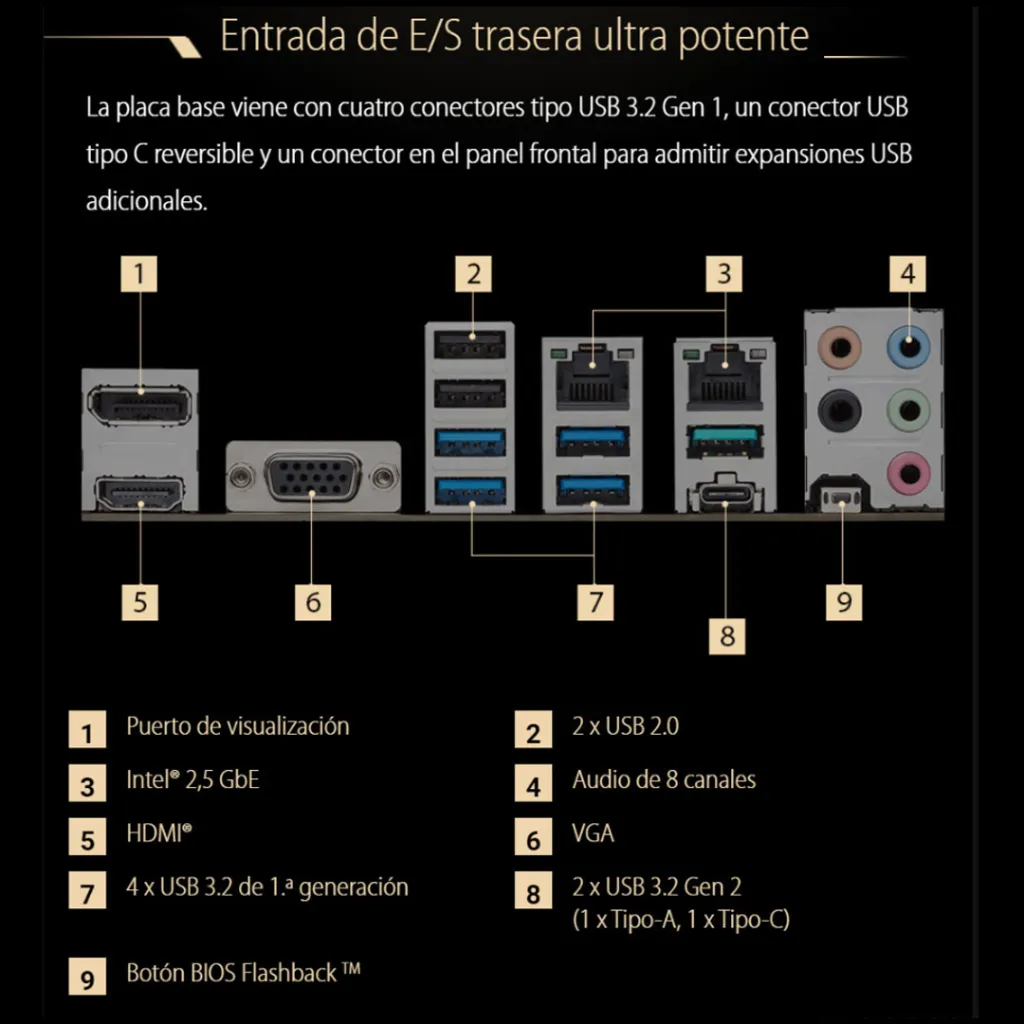

| Back I/O Ports | 2 x USB 3.2 Gen 2 ports (1 x Type-A, 1 x Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x VGA port 2 x Intel 2.5Gb Ethernet ports 5 x Audio jacks 1 x BIOS FlashbackTM button |
|---|
| Onboard USB | 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
|---|---|
| Other Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin W_PUMP+ header 3 x 4-pin Chassis Fan headers Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 1 x SlimSAS port Miscellaneous 1 x LPT header 1 x T-sensor 1 x Clear CMOS header 1 x COM Port header 1 x BMC Header 1 x Front Panel Audio header (AAFP) 1 x Start button 1 x Flexkey button 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x M.2 slot (Key E) 1 x LPT_P80 Switch 1 x Thunderbolt header |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector 1 x 6-pin PCIe Power connector |
| Windows 11 | Supported |
|---|
| Features | ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - Q-Code - M.2 Q-Latch - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - SafeDIMM - SafeSlot - BIOS FlashBack button - BIOS FlashBack LED Bespoke Motherboard Design & Business Focused Features - 24/7 Reliability |
|---|

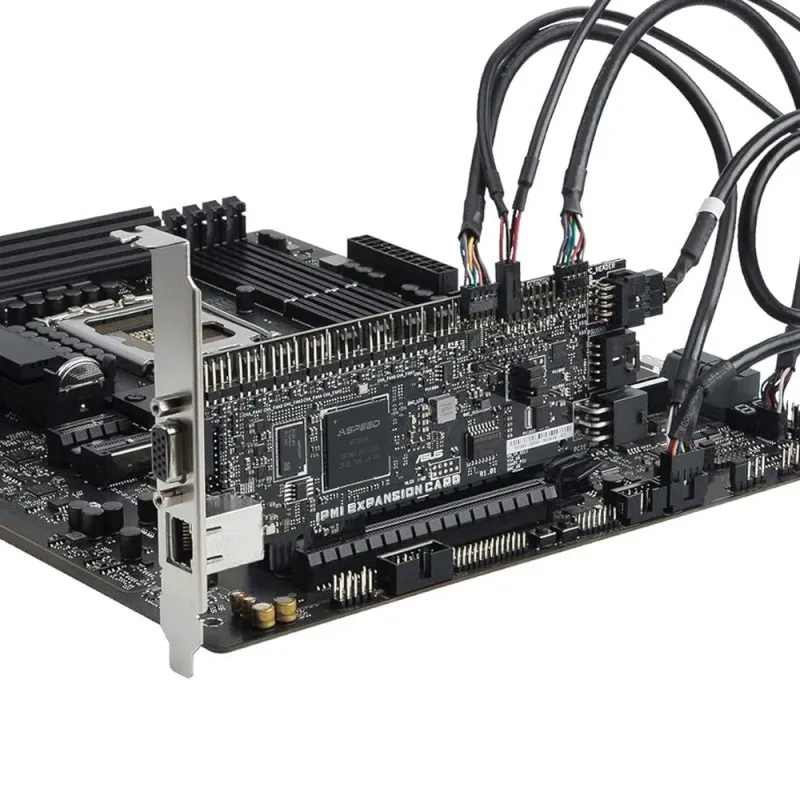

| Package Contents | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x Q-connector 1 x M.2 Rubber Packages 2 x Screw package for M.2 SSD IPMI Expansion Card and related accessories 1 x IPMI expansion card 1 x BMC cable 1 x Power On/Off cable 1 x Reset cable 1 x USB 2.0 cable 1 x IPMI Expansion Card user guide Documentation 1 x User guide 1 x ACC Express Activation Key Card |
|---|
